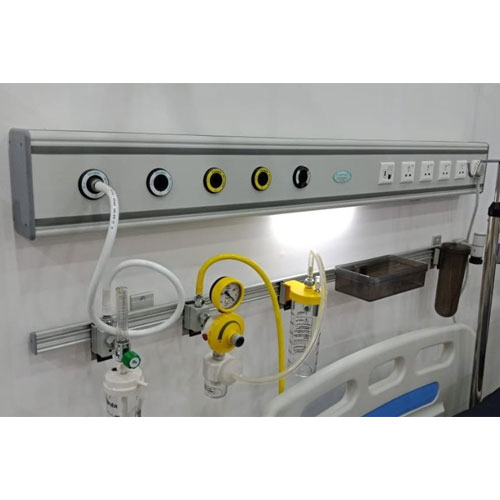

Wall Mounted, Mains Operated Bed-Head Panel for use on ICU / MICU / SICU beds, Pre / Post-Op Recovery / Trauma & Resuscitation beds.

  1. Approx. Dimensions : 1800 mm L x 250 mm H x 65mm D
    (The dimensions may be slightly adjusted to accommodate concealed conduits, gas
    lines and gas terminals.)
  2. Extruded aluminum sheet body, machine pressed, pre-treated, dull satin finish epoxy
    polyester powder coated.
  3. Hinged front panel for ease of internal access and maintenance of panel.
  4. 2 nos. 25 A. MCB, wired for isolation.
  5. 8 nos. 16/6 Amp electrical switch socket outlets.
  6. 1 no. 3-gang switches for up/down lighter patient-bed lamp and examination lamp.
  7. RJ-11 outlet for intercom / epabx phone.
  8. Slot for Bio-signal Connector. (Connector, may be supplied by patient monitor vendor.)
  9. Slot for RJ-45 Data Connectors for HIS network. (Connectors and mounting plate as
    supplied by Structured Cabling vendor.)
  10. Slot for Nurse-Call Bed Unit module w/slots for instrument alarm sockets. (Module to be
    supplied by Nurse-Call System vendor.)
  11. Slots for electrically isolated medical gas outlets – upto 6 nos. ( Gas outlets to be
    supplied by Gas Pipeline or Gas Outlets vendor.)
  12. Optional, quartz or digital clock.
  13. Optional, stainless steel medical rail for equipment Mounting – 1200 mm or longer. Rail are extruded aluminum, rail length is equal to the length of BHP.
  14. Optional, range of medical rail mountable accessories.

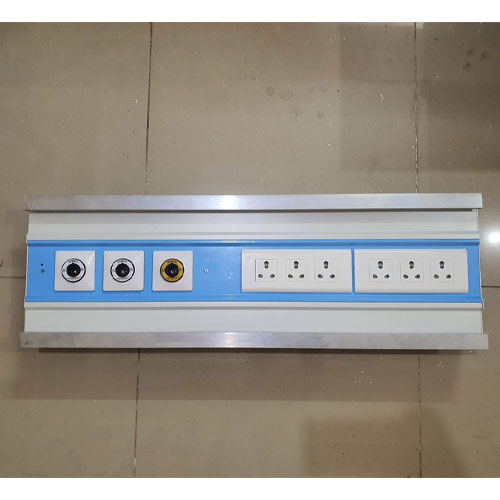

Wall Mounted, Mains Operated Bed-Head Panel for use on patient beds in
Private and Deluxe Wards.

  1. Approx. Dimensions : 1400 mm L x 250 mm H x 65mm D
  2. Extruded aluminum sheet body, machine pressed, pre-treated, dull satin finish epoxy polyester powder coated.
  3. Hinged front panel for ease of internal access and maintenance of panel.
  4. 2 nos. 16 A. MCB, wired for isolation.
  5. 4 nos. 16/6 Amp electrical switch socket outlets.
  6. 1 no. 3-gang switch for up/down lighter patient-bed lamp and examination lamp.
  7. RJ-11 outlet for intercom / epabx phone.
  8. Slot for RJ-45 Data Connectors for HIS network. (Connectors and mounting plate as supplied by Structured Cabling vendor.)
  9. Slot for Nurse-Call Bed Unit module w/slots for instrument alarm sockets. ( Module to be supplied by Nurse-Call System vendor.)
  10. Slots for electrically isolated medical gas outlets – 2 nos. ( Gas outlets to be supplied by Gas Pipeline or Gas Outlets vendor.)
  11. Optional, quartz or digital clock.
  12. Optional, stainless steel medical rail for equipment mounting – 800 mm or longer. Rail are extruded aluminum , Rail length is equal to the length of BHP.
  13. Optional, range of medical rail mountable accessories.
